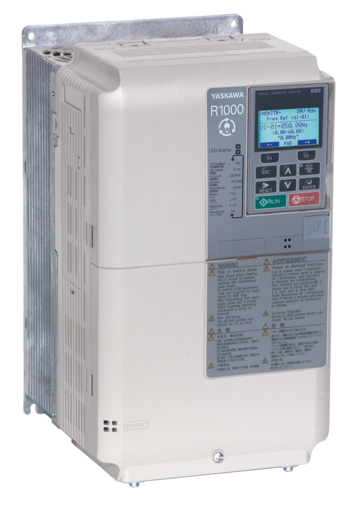

Serie R1000

CIMR-RC4A0035AAA

Unidad regenerativa

Perspectiva general

La nueva unidad regenerativa de Yaskawa R1000 con conmutación de bloque es una alternativa ecológica y sostenible para resistencias de frenado. Asimismo, en comparación con las soluciones convencionales, ocupa menos espacio y requiere menor mantenimiento. Adicionalmente, la realimentación a la red de la energía de frenado reduce los costes y protege el medio ambiente.

  • Permite el funcionamiento de 4 cuadrantes sin resistencias de frenado
  • El reemplazo de las resistencias de frenado ahorra espacio y facilita la instalación
  • Como las resistencias no generan calor, se requiere menos refrigeración para el armario de conexiones, con lo que se ahorra energía y se reducen costes
  • Allows 4-quadrant-operation without braking resistors

Detalles técnicos

  • Potencia de entrada
  • 400 V
  • Intensidad Nominal de Salida (HD)
  • x Nº
  • Intensidad Nominal de Salida (ND)
  • x Nº
  • Overload Tolerance (ND)
  • 120% for 60 s
  • Overload Tolerance (HD)
  • 150% for 60 s
  • Intensidad Salida Motor Máx. (HD)
  • x Nº
  • Intensidad Salida Motor Máx. (ND)
  • 37 kW
  • Potencia de entrada de las fases
  • 3 fases
  • Filtro EMC
  • x Nº
  • Tipo de motor
  • x Nº
  • Encoder
  • x Nº
  • Cumplimiento de estándares
  • RoHS, CE, UL, UKCA
  • Capacidad regenerativa
  • 35 kW
  • Temperatura ambiente (Mín.)
  • -10 °C
  • Temperatura ambiente (Máx.)
  • 40 °C
  • Temperatura ambiente (Máx.) con desclasificación
  • 50 °C
  • Humedad Máx. (sin condensación)
  • 95 %
  • Altitud Máx. (sin desclasificación)
  • 1000 m
  • Altitud Máx. (con desclasificación)
  • 3000 m
  • Altura
  • 450 mm
  • Ancho
  • 275 mm
  • Profundidad
  • 258 mm
  • Peso
  • 20 kg
  • Cooling method
  • Air cooling
  • Envolvente
  • IP00
  • Especificaciones Medioambientales
  • Standard
  • Analog Input
  • 3
  • Analog Output
  • 2
  • Digital Input
  • 8
  • Digital Output
  • 4
  • Safety Level
  • x Nº
  • Performance Level
  • x Nº
  • Torque Control
  • Not available
  • Transistor de frenado
  • External
  • Motor Thermal Protection
  • Not available
  • Max Output Frequency
  • x Nº
