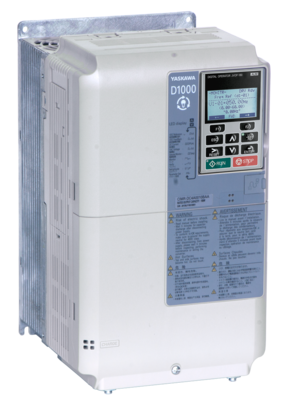

Serie D1000

CIMR-DC2A0065BAA

Unidad de conversor regenerativo

Perspectiva general

La unidad de conversor regenerativo D1000 de Yaskawa ahorra espacio y energía. La D1000 , adecuada tanto para accionamientos regenerativos individuales como para sistemas de variadores, servoejes o robots, realimenta a la red el exceso de energía de frenado en lugar de convertirla en calor. Con ello, no solo se reduce el consumo energético y el coste, sino que también se contribuye a la protección de nuestro medio ambiente.

  • Bajo consumo de energía gracias a los sistemas comunes de bus de CC: la energía de freno de un accionamiento la consumen otros accionamientos del sistema
  • La corriente de entrada sinusoidal reduce la tensión en el sistema de suministro de energía (líneas, transformadores)
  • Requiere menos trabajo de mantenimiento que los sistemas con resistencias de frenado
  • Reduce los costes operativos totales del sistema

Detalles técnicos

  • Potencia de entrada
  • 200 V
  • Potencia de entrada de las fases
  • 3 fases
  • Intensidad Nominal de Salida (ND)
  • 197 A
  • Intensidad Salida Motor Máx. (ND)
  • 55 kW
  • Filtro EMC
  • ✓ Sí
  • Temperatura ambiente (Mín.)
  • -10 °C
  • Temperatura ambiente (Máx.)
  • 40 °C
  • Temperatura ambiente (Máx.) con desclasificación
  • 50 °C
  • Humedad Máx. (sin condensación)
  • 95 %
  • Altitud Máx. (sin desclasificación)
  • 1.000 m
  • Altitud Máx. (con desclasificación)
  • 3.000 m
  • Altura
  • 450 mm
  • Ancho
  • 705 mm
  • Profundidad
  • 330 mm
  • Peso
  • 57 kg
  • Envolvente
  • IP00
  • Especificaciones Medioambientales
  • Standard
